Energy Saving
Comprehensive energy management tools allows reducing of energy costs and increase efficiency
- Improving energy efficiency in industrial plants
- Energy balance calculations and alerts
- Detection of energy leaks
- Identifying exceptional transformer and cable losses
- Prevention of peak demand and low power factor surcharges
- Calculation of energy baseline
Power Quality Analysis
Improve overall grid reliability, avoid expensive equipment failures and resolve energy supply disputes
- Compliance report according to EN 50160
- Harmonics and inter-harmonics management
- Waveform logging at 1024 samples per cycle
- Sags and swells logging and analysis
- Fast transient detection and capture
- PQDIF and COMTRADE reports
Smart Grid
Complete solution for smart grid monitoring and control
- Power station monitoring systems
- Substation automation
- IEC 61850 power meters
- Digital fault recording (DFR)
- Renewable energy management
- Electric vehicle monitoring
Industrial Applications Solutions
Key Benefits of SATEC Solutions for Industrial Applications
- Optimise Energy Usage and Minimise Costs
- Prevent Equipment Damage with Power Quality Monitoring
- Verify the Efficiency of Energy Savings Initiatives
- Proactive Maintenance and Asset Management
- Enhanced Accuracy with Medium Voltage LPIT Sensors
SATEC AC / DC Meters & Power Quality Analyzers
Hitec Instruments Limited
is the authorized dealer of SATEC Energy Equipment in the UK and Ireland.
We offer a wide range of advanced instruments for AC and DC power metering, billing, and power quality monitoring.
-
PM335 PRO
Satec PM335 PRO is used for advanced power monitoring applications of both AC and DC current. With waveform recording capabilities and 16GB of storage, it is a powerful Class A, Ed. 3.1 power-quality analyzer and event recorder.
Featuring multiple protocols (IEC 61850, DNP3 and IEC 60870-5-101/104) and dual-port ethernet, this is the ultimate solution for power monitoring, meeting and exceeding the most current requirements in utility and industrial applications.
Advanced IEC61850 Multifunction AC/DC Power Meter and Power Quality Analyser
- Class 0.2S accuracy
- IEC 61850 / DNP3
- Power Quality Analyzer: Class A, Ed. 3.1
- DC Metering via Hall Effect Sensors
- Compliance with ENA EREC G99
- Waveform Recording
- 16GB on board memory
-
PM180
SATEC PM180, our flagship power quality analyzer, seamlessly integrates multiple advanced functionalities into a single device, making it a cost-effective solution.
Its unique modular design allows for hot-swapping of various add-on cards, enabling versatile functionality.
As a result, it can consolidate and replace several devices, leading to cost savings and space optimization while minimizing complexity.
Multifunction Power Quality Analyzer & Phasor Measurement Unit
- IEC 61000-4-30 Class A (ed. 3) NMi certified power quality analyzer
- IEC 61850 for the digital substation
- Digital Fault Recorder
- Phasor Measurement Unit
- Bay Controller
- Sequence of Events Analyzer
- Class 0.2S Revenue Grade accuracy
- Compliance with ENA EREC G99
- Fast Transient Recorder: 1024 samples/cycle
-
PM135
SATEC PM135 is a compact multifunction powermeter, designed for metering three-phase AC current circuits.
Featuring versatile I/O options, communication ports and protocols it is suitable for integration in utility substation or industrial SCADA systems.
Multifunction 3-phase Power Meter with LCD Display
- Accuracy: Certified class 0.5S,
meets class 0.2S - Frequency measurement range: 25-400 Hz
- Digital & Analog I/O: up to 16 I/O
- Individual Harmonics to 40
- Variety of communication modules
- LED Bar-graph displays load percentage
- Accuracy: Certified class 0.5S,
-
EM235 PRO
Satec EM235 PRO is used for advanced power monitoring applications of both AC and DC current. It is a powerful IEC 61000-4-30 Class A, edition 3.1 compliant power-quality analyzer and event recorder with waveform recording capabilities.
With support for multiple protocols (including IEC 61850, DNP3, and IEC 60870-5-101/104) and dual-port Ethernet connectivity, the EM235 PRO stands as the ultimate choice for power monitoring, meeting the latest requirements in utility and industrial applications.
Ultra-compact IEC61850 Multifunction AC/DC Power Meter and Power Quality Analyser
- IEC 61000-4-30 Class A, Edition 3.1
- Class 0.2S accuracy
- IEC 61850 / DNP3 / IEC 60870-5-101/104
- DC Metering via Hall Effect Sensors
- Compliance with ENA EREC G99
- Waveform Recording
- 16GB on board memory
- DIN-rail form factor
-
BFM-II
SATEC BFM-II is the second generation of the Branch Feeder Monitor™, providing energy management for multi-point power solutions.
Ideal for both new and retrofit projects, the BFM-II automatically provides metering, demand and energy readings, logging and multi-tariff (TOU) data.
The BFM-II monitors up to 18 three-phase circuits, 54 singlephase circuits, or any combination of single or three-phase circuits.
Branch Feeder Monitor II
- Modular Design: up to 54 current channels / 72 I/O
- Tenant Billing & Monitoring
- Multi-circuit Energy Reading
- Built-in Communication Platforms
- Time-of-use (TOU) Metering
- Data Logging
- Digital Fault Recorder (DFR)
- Individual Harmonics Analysis
-
PM130 PLUS
SATEC PM130 PLUS is a compact, multifunction Power Meter, designed for metering three-phase AC current or three DC current circuits.
Featuring versatile I/O options, communication ports and protocols this series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
PM130 PLUS also allows Direct Current (DC) metering via shunt, making it a unique meter compatible with DC applications such as renewable energy or data centers.
DC Compatible Multifunctional three-phase Power Meter
- Accuracy: Certified class 0.5S
- DC Metering via Shunt
- Individual Harmonics to 40
- Variety of communication modules
- Frequency measurement range: 25-400 Hz
-
PMU PRO
SATEC PMU PRO is a compact DIN rail mountable phasor measurement unit (PMU) designed to meet the requirements of users ranging from electrical panel builders to substation operators.
The PMU PRO provides synchrophasor and frequency measurements compliant with the P and M performance classes of IEC/IEEE 60255-118-1:2018 standards.
Phasor Measurement Unit
IEC/IEEE 60255-118-1:2018
Class M/P Compliant- Micro-second resolution time-sync: PTP / IRIG-B
- Full IEC 60255-118-1:2018 compliance for M Class / P Class
- Dual Protocol: IEC 61850-9-2 and IEEE C37.118.2
- Up to 240 frames/sec
- Super-compact design
- Expected Steady State Total Vector Error (TVE) at nominal frequency < 0.05%
-

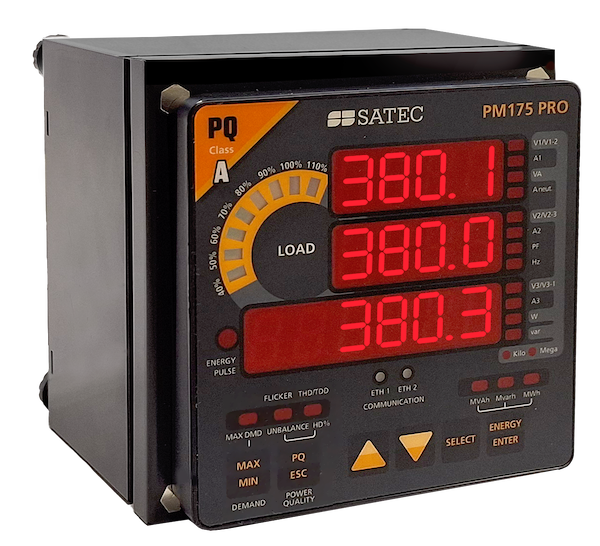

PM175 PRO
Panel-mounted Class A Ed. 3.1 power quality analyzer, monitoring voltage, current, power, frequency and energy.
Equipped with a bright LED display, the PM175 PRO power quality analyzer combine the familiar look and feel of the PM17x legacy models with the advanced PRO Series capabilities, introducing unique features, such as an IRIG-B input and a fourth voltage input (Vref)
Multifunction Advanced Power Quality Analyser & Power Meter
- Class A, Ed. 3.1 analyzer per IEC 61000-4-30
- EN50160 reports and statistics
- Up to 0.0001 Hz resolution
- Dual Port Ethernet: RSTP support
- Waveform capture and recording
- Individual harmonics, up to the 63rd harmonic
- Onboard memory: 16GB
- 1 microsecond time-sync accuracy via IRIG-B
- Extra-wide range input rating: 1,000V AC (L-L)
