Advanced Power Quality Analyser & Power Meter

Description

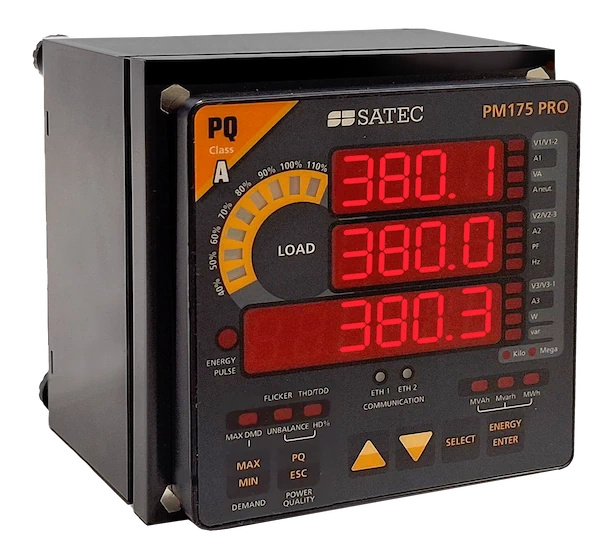

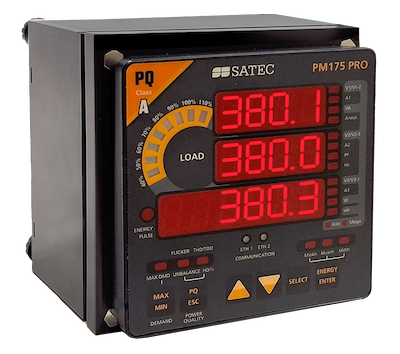

The PM175 PRO power quality analyzer merges the trusted design of PM17x legacy models with the advanced functionality of the PRO Series.

This powerful combination is presented on a bright LED display and is further enhanced by unique features, including an IRIG-B input and a fourth voltage input (V_ref).

Featuring multiple protocols (IEC 61850, DNP3 and IEC 60870-5-101/104) and dual-port ethernet, it is the ultimate solution for power monitoring, meeting and exceeding current requirements in utility and industrial applications.

LPIT Sensor interface

The PM175 PRO provides interface with a variety of commercial LPIT sensors designed for MV metering. This unique application is available for both PT/CT inputs.

Applications

Marketing Materials

• PM175 PRO Datasheet
• SATEC Product Catalogue

Tech Specs

• • Multi-Functional 3-Phase Power Meter

    • Revenue Meter: Class 0.2/0.2S accuracy
    • True RMS, voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
    • Ampere/Volt demand meter

  • Waveform Capture and Recording

    • Provides simultaneous capture for all voltage and current channels with choice of sample rate, up to 256 samples/cycle
    • Selectable pre-fault / post-fault recording length
    • 8 Fast Waveform recorders:
      • 7-channel (V₁-V₃, I₁-I₄) simultaneous recording
      • selectable AC sampling rate of 32, 64, 128 or 256 samples per cycle
      • 20 pre-fault cycles
      • synchronized waveforms from multiple devices in a single plot
      • exporting waveforms in COMTRADE and PQDIF file formats is possible via PAS software

• Power Quality

  • Class A, Ed. 3.1 analyzer per IEC 61000-4-30
  • EN50160 reports and statistics:
    • PQ events triggering, programmable limits
    • EN 50160 Power Quality event log
    • EN 50160 compliance statistics
  • Voltage Dips/Sags, Interruptions, Swells, Unbalance, Transient and THD events recording
  • THD of voltage and current, custom alarming, TDD, K factor, Crest factor
  • Individual harmonics, up to the 63^rd harmonic
  • IEEE 519 harmonic analysis

• • AC Measurements

    PM175 PRO is provided with fully isolated AC inputs for connecting to AC feeders:

    • Four isolated AC voltage inputs (Rating: 10-1,000V AC (L-L) @ 50/60 Hz)
    • Four isolated AC current inputs
    • Leakage current detection: accurate calculation of residual current is enabled via a 4^th current input for the monitoring of the neutral current line.
      Alerts and control thresholds can be configured in response to leakage current detected

  • Built-In I/O

    • 2 optically isolated inputs:
      • 24V DC dry contact
      • programmable debounce time from 1 ms to 1 sec
      • control setpoints, 1 pps time synchronization
      • 1 ms sampling rate
    • 1 Solid State Relay output:
      • unlatched, latched and pulse operations, fail-safe operation for alarm notifications
      • programmable pulse width
      • direct remote relay control through communications
    • 1 optically isolated analog input: Universal input of configurable range (±1mA / 0-1mA, 0-20mA, 4-20mA, etc.)
    • IRIG-B time sync input
